Non-Pressurized Condensed
Aerosol Generators

JIL-E100 / JIL-TH100 / JIL-E/TH100

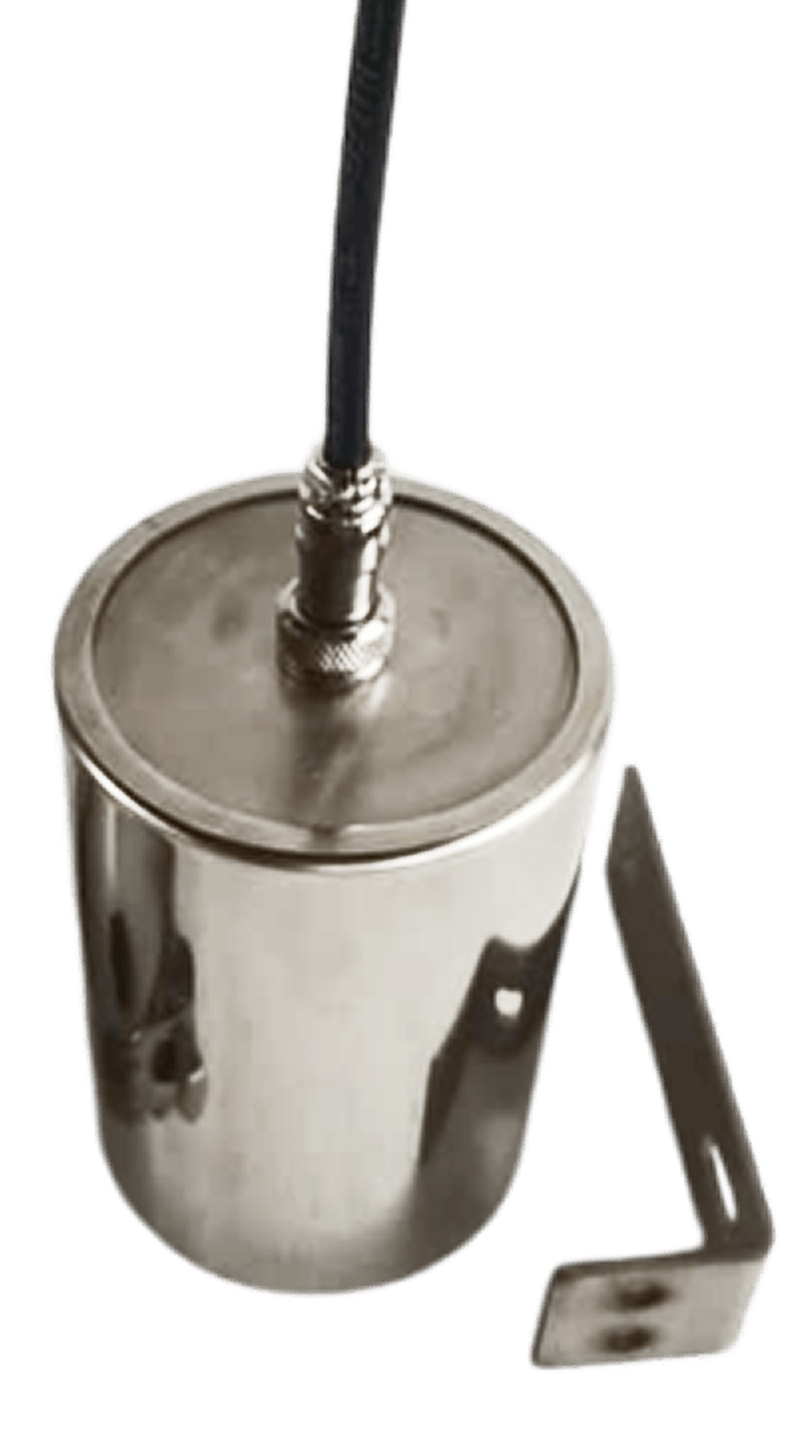

JIL-E60

JIL-E100

Electrical Parameter
Activating voltage:
DC3∼24/AC3-220V
Min activating current:
≧250mA/5mS
Max safety current:
≦150mA/5min

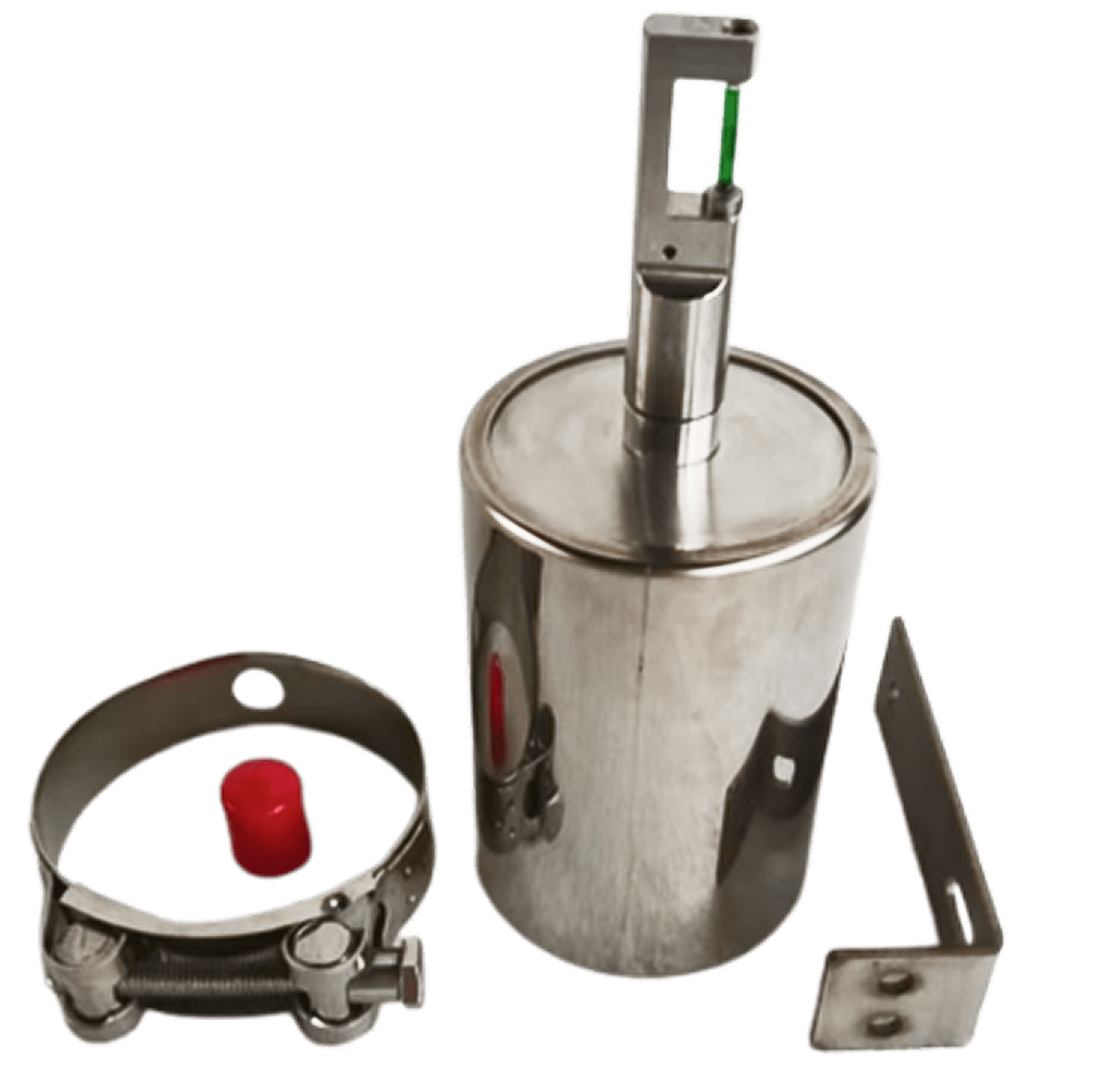

JIL-TH60

JIL-TH100

Thermal Parameter
Activation Temperature
(Other Temperature upon request)
57°C Orange
68°C Red
79°C Yellow
93°C Green
141°C Blue

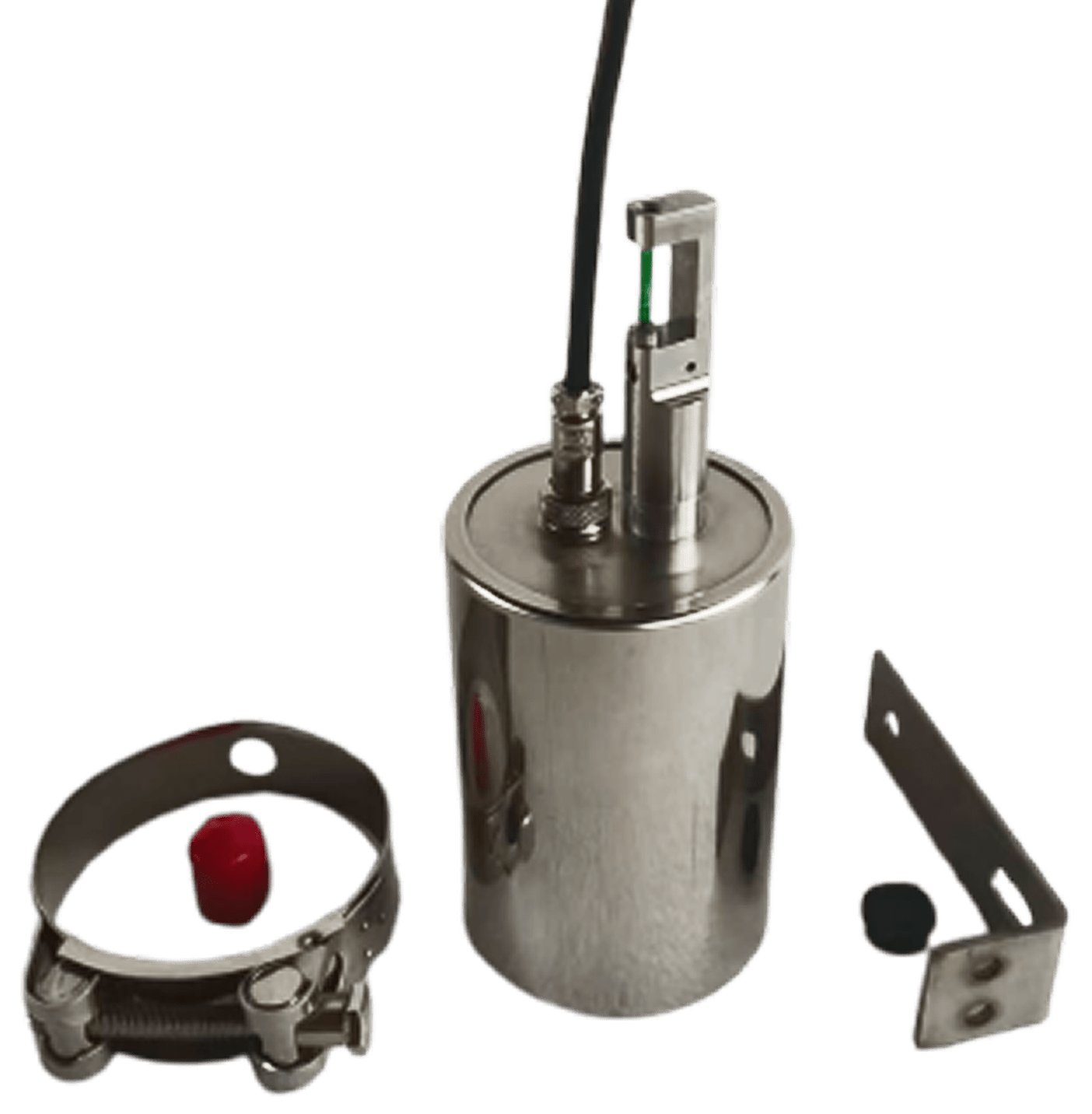

JIL-E/TH60

JIL-E/TH100

Hybrid Parameter
(Electrical + Thermal)
Parameter of electrical Activator
Activating voltage: DC3∼24/AC3-220V
Min activating current: ≧250mA/5mS
Max safety current: ≦150mA/5min
Thermal Activator Thermal Cord Activator Activation Temperature
175°C
300°C
Glass Bulb Activator Activation Temperature
(Other Temperatures upon request)		 57°C
68°C
79°C
93°C
141°C

FEATURES:

  • Zero Global Warming Potential
  • Zero Atmospheric Life
  • Zero Ozone DepletionPotential
  • Non-toxic
  • A simple and Effective fire suppression system

Technical Specification

Description Electrical Thermal Hybrid
Modal 100g 100g 100g
Dimension ∅76*110mm ∅76*110mm ∅76*110mm
Gross (kg) 0.94kg 0.94kg 0.94kg
Mass of compound (gm) 100g 100g 100g
Volume coverage 1m3 1m3 1m3
Discharge time 10 sec 10 sec 10 sec
Operating condition -50°C - + 90°C/Up to 95%RH -50°C - + 90°C/Up to 95%RH -50°C - + 90°C/Up to 95%RH
Color Original color of stainless steel Original color of stainless steel Original color of stainless steel
Spout temperature ≦200°C(5mm from the outlet) ≦200°C(5mm from the outlet) ≦200°C(5mm from the outlet)
The safe distance from the spout for person 1.5m 1.5m 1.5m
Use life (Life-span) 10 years more 10 years more 10 years more
CE approval Related to CE Directive(s):2014/35/EU (Low Voltage) Related to CE Directive(s):2014/35/EU (Low Voltage) Related to CE Directive(s):2014/35/EU (Low Voltage)
CE standard CEN/TR 15276-1:2009 CEN/TR 15276-1:2009 CEN/TR 15276-1:2009
Activation Activations Electrical Activation Thermal Activation Electrical / Thermal Activation
Class fire A, B, C, F A, B, C, F A, B, C, F
Fixing bracket L shape L shape L shape
